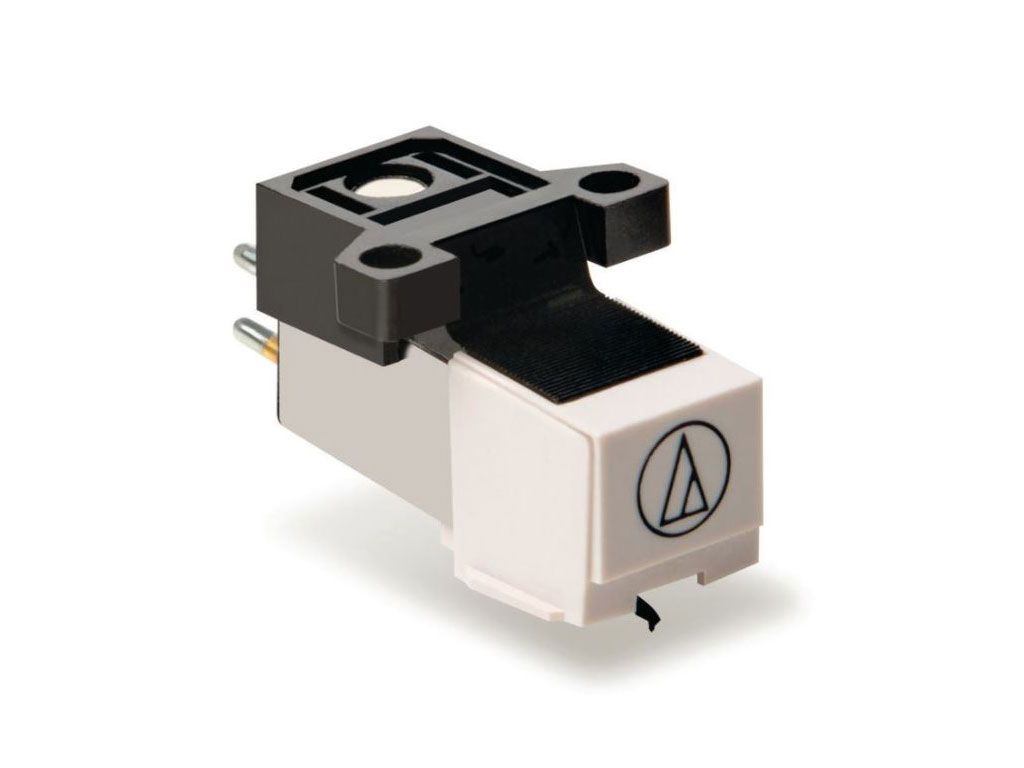

Complete original Audio - Technica AT-3600L transmission including tip, standard mounting with 12,7mm (1/2) screws.

Designed for normal home HiFi use, mechanically and electrically identical to the AT91.

Suitable replacement for the no longer available TESLA systems VM-2101, VM-2102, VM-2103, VM-2202 and VM-2204 and also for Unitra MF-101 (VM2101, VM2102, VM2103, VM2202 and VM2204, MF101).

This system, together with the Audio Technica AT-91, is one of the most widely used and is used by manufacturers all over the world, as it stands out for its very excellent ratio of reliability, quality reproduction and affordable price.

This cartridge, thanks to its increased pressure, is suitable for capturing older, less well maintained, dusty and damaged records or for instruments whose design is not mechanically perfect. The AT-3600L (AT-3600LB) system has a spherical tip and is a direct replacement for the Gemini CN-15, it is also suitable for DJ use.

Specifications of the Audio Technica AT-3600LB:

• Frequency range 20 Hz - 20kHz
• tip pressure 2,5 - 3,5g, optimally 3,0g
• weight 5,7g
• output level 4.0mV / 1kHz
• channel crosstalk - 20 dB
• impedance 47 kohm
• tip type conical
• replacement tip ATN3600, ATN91 or 10262

This cartridge can be easily used with any mechanically related magnetodynamic cartridge of the MM system

used in Sencor STT 500URA, Auna Fullmatic TTS8-Fullmatic BK

used in Audio-Technica LP60USB, LP60, AT-LP60-BT, AT-LP60-USB, Dual DT910-1, Thomson TT350, Lenco LBT-188PI, Denon DP300F 00D941003790 - the cartridge is under the designation AT3600L / AT-3600LB from Audio - Technica, Kruger&Matz TT-602
