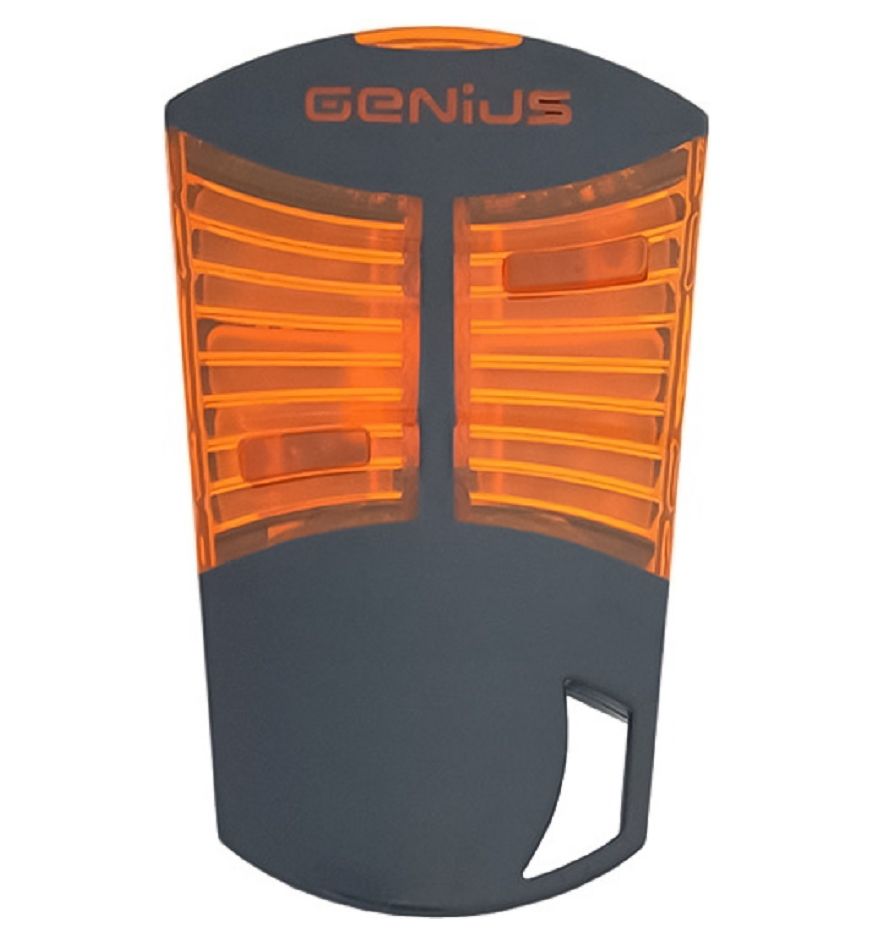

Replacement radio (RF) remote control fully compatible with the type GENIUS AMIGOLD TX2, AMIGOLD TX4.

The remote control has been specially developed for the following GENIUS models: BLIZZARD 9 KIT, DIABLO 24 VDC, DUAL COMPAS24, FALCON 14C SLIDE, GMIS300LSKIT, MILORD 5C SLIDE, MISTRAL 300. (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

This remote control is available on branded remote control General GATE (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General GATE fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multifrequency auto-scan remote control.
• Copying/cloning of the code/protocol from the original remote control.
• Battery Panasonic CR2032 included.
• Dimensions: 69 x 34 x 10 mm
• If any specific colour required, state this information to the customers’ note during placing an order.

The remote control supplied is already pre-programmed on buttons 1 and 2. You only need to register the remote control to your original receiving unit memory

Copying code from the original remote control:

WARNING: Ensure that the original remote control you are copying is the MASTER. After pressing any button, the LED should only blink twice and not light up continuously immediately!!!

1. Press and hold button 1 on the General GATE remote and then press button 2 four times.
2. Release both buttons. The blue indicator LED on the General GATE remote will briefly blink every two seconds.
3. Place the original remote control you want to duplicate in front of or next to the General GATE remote.
4. On the original remote control, press and hold the button you want to duplicate. Keep the button on the original remote pressed until the blue LED on the General GATE doesn't light up. Then release the button on the original remote.
5. In a moment, the blue indicator LED on the General GATE will blink twice every two seconds. This alert informs the user that sending the remote control a source "SEED" code is needed for successful duplication.
6. Prepare the original remote control to send the "SEED" code. Press and hold buttons 1 and 2 simultaneously on the original remote control. Once the LED starts blinking on the original, release the buttons (NOTE: THESE BUTTONS ARE DIAGONALLY LOCATED).
7. While the LED on the original remote control is blinking, place the original back towards the General GATE remote. Press the same button on the original remote control as in step 4 and hold it pressed until the LED on the General GATE changes its flashing speed (will blink faster) and the LED color to red.
8. At this moment, press the button where you want to store the code. The red LED on the remote will briefly light up and then turn off. This confirms the correct storage of the code on the selected button.

How to REGISTER the new remote control into the original main unit:

1. Press and hold the P1 and P2 buttons simultaneously on the General GATE remote control until the indicator LED starts flashing.
2. It starts flashing. Press and hold the SW button.
3. Press the 1 button (stored position on G-GATE), the LED will light up. When it goes out, the remote control has been stored in memory.
4. Test the functionality of the remote control.

One single RF General GATE remote control for all: gate, garage door, venetian blind and indoor lightning. Other 3 buttons of the remote control could be programmed for other devices which require RF (radio) remote control. So it can control up to 4 different devices / receivers. This remote control could be used and programmed for any brand (with both fixed and rolling code). General GATE is THE ONLY RF remote control that you can program with codes of different door/gate manufacturers/frequencies into one General GATE. Supported frequency 280-870 MHz.
