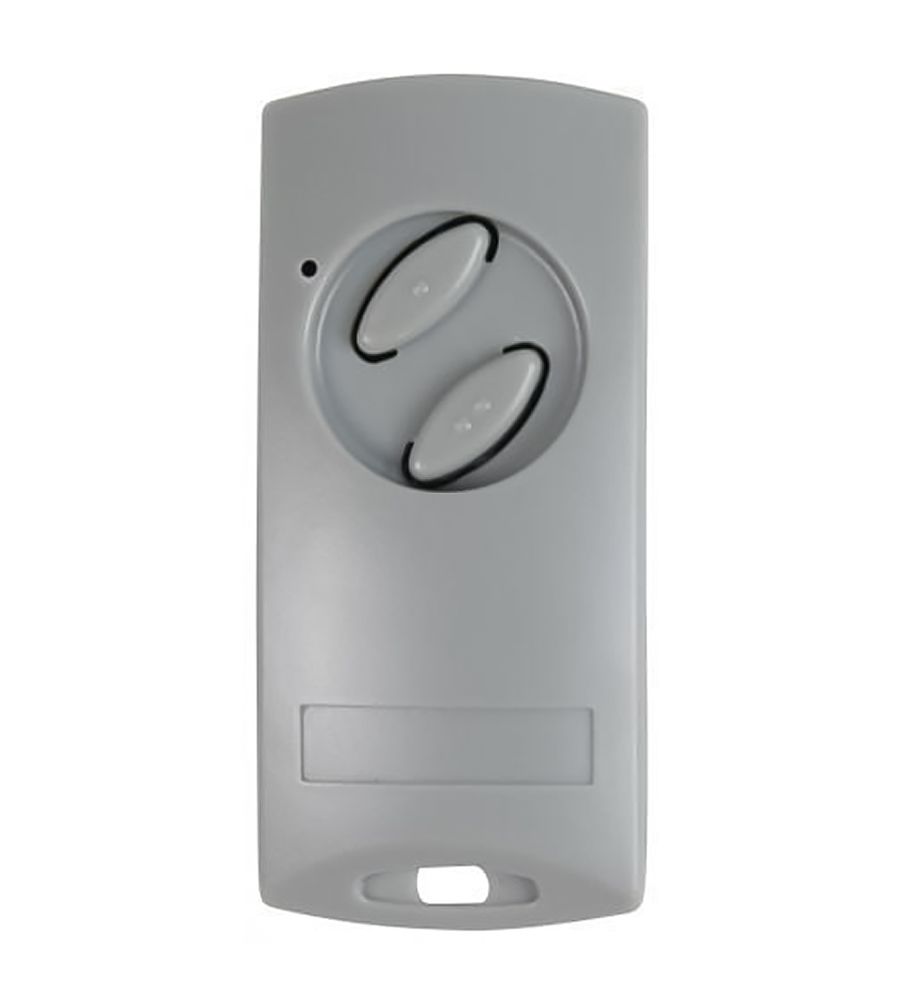

Replacement radio (RF) remote control fully compatible with the type HÖRMANN RSE 2 433 MHz.

The remote control has been specially developed for the following HÖRMANN models: ECOSTAR, LIFTRONIC 500, LIFTRONIC 700, PROLIFT 500. (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

This remote control is available on branded remote control General GATE (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General GATE fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multifrequency auto-scan remote control.
• Copying/cloning of the code/protocol from the original remote control.
• Battery Panasonic CR2032 included.
• Dimensions: 69 x 34 x 10 mm
• If any specific colour required, state this information to the customers’ note during placing an order.

The remote control supplied is already pre-programmed on buttons 1 and 2. You only need to register the remote control to your original receiving unit memory

Copying code from the original remote control:

1. Press and hold button 1 on the General GATE remote and then press button 2 four times.
2. Release both buttons. The blue indicator LED on the General GATE remote will briefly blink every two seconds.
3. Place the original remote control you want to duplicate in front of or next to the General GATE remote.
4. On the original remote control, press and hold the button you want to duplicate. Keep the button on the original remote pressed until the red indicator LED on the General GATE remote rapidly flashes (before the red LED flashes, the blue LED may light up for a moment).
5. At this moment, press the button where you want to store the code. The red LED on the remote will briefly light up and then turn off. This confirms the correct storage of the code on the selected button.
6. The copy has been successfully created. The remote control needs to be paired with the drive unit (refer to the drive unit manual).

How to REGISTER the new remote control into the original main unit:

1. Short press the programming button "P" on the control unit - the red LED starts flashing slowly.
2. Press for at least 1 second the button you want to program on the new remote control - distance 1 meter between the transmitter and the receiver.
3. When successful, the red LED on the receiver unit flashes faster - release the remote control button.
4. Within 15 seconds, press the same button on the remote control again and hold it. The LED flashes very quickly, then release the button.
5. When the LED flashes, the remote control is successfully registered.

One single RF General GATE remote control for all: gate, garage door, venetian blind and indoor lightning. Other 3 buttons of the remote control could be programmed for other devices which require RF (radio) remote control. So it can control up to 4 different devices / receivers. This remote control could be used and programmed for any brand (with both fixed and rolling code). General GATE is THE ONLY RF remote control that you can program with codes of different door/gate manufacturers/frequencies into one General GATE. Supported frequency 280-870 MHz.
