Replacement radio (RF) remote control fully compatible with the type SOMMER BASELINE 4025.

The remote control has been specially developed for the following SOMMER models: APERTO, DUO, DUO VISION, RUNNER, SPRINT, TWIST. (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

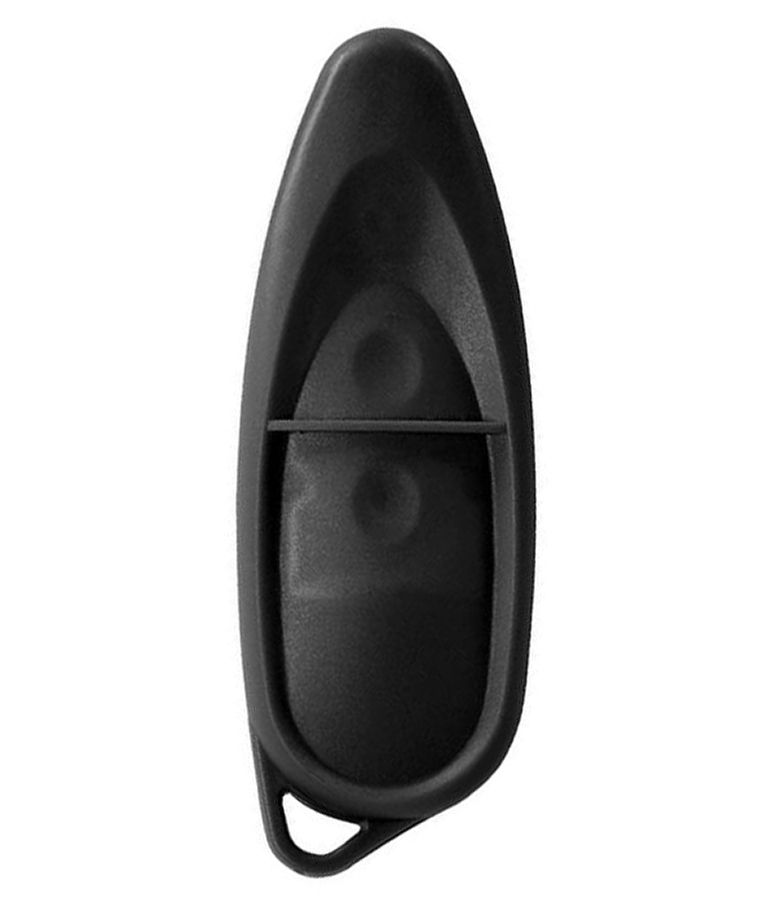

This remote control is available on branded remote control General GATE (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General GATE fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multifrequency auto-scan remote control.
• Copying/cloning of the code/protocol from the original remote control.
• Battery Panasonic CR2032 included.
• Dimensions: 69 x 34 x 10 mm
• If any specific colour required, state this information to the customers’ note during placing an order.

The remote control supplied is already pre-programmed on buttons 1 and 2. You only need to register the remote control to your original receiving unit memory

Copying code from the original remote control:

1. Press and hold button 1 on the General GATE remote and then press button 2 four times.
2. Release both buttons. The blue indicator LED on the General GATE remote will briefly blink every two seconds.
3. Place the original remote control you want to duplicate in front of or next to the General GATE remote.
4. On the original remote control, press and hold the button you want to duplicate. Keep the button on the original remote pressed until the red indicator LED on the General GATE remote rapidly flashes (before the red LED flashes, the blue LED may light up for a moment).
5. At this moment, press the button where you want to store the code. The red LED on the remote will briefly light up and then turn off. This confirms the correct storage of the code on the selected button.
6. The copy has been successfully created. The remote control needs to be paired with the drive unit (refer to the drive unit manual).

How to REGISTER the new remote control into the original main unit:

1. Remove the translucent cover from the control unit.
2. Press the button labeled CODE, the LED indicator will light up and indicate learning mode start.
3. By repeatedly pressing the CODE button, you can switch between channels (can be 1-4) to which remote control you want to register.
4. Within 10 seconds, press and hold the selected button on the remote control to write to the controller.
5. The LED will start flashing to indicate that the transmit code has been memorized and will turn off. Writing the remote control to the memory of the control unit is complete, you can test the remote control.

One single RF General GATE remote control for all: gate, garage door, venetian blind and indoor lightning. Other 3 buttons of the remote control could be programmed for other devices which require RF (radio) remote control. So it can control up to 4 different devices / receivers. This remote control could be used and programmed for any brand (with both fixed and rolling code). General GATE is THE ONLY RF remote control that you can program with codes of different door/gate manufacturers/frequencies into one General GATE. Supported frequency 280-870 MHz.
