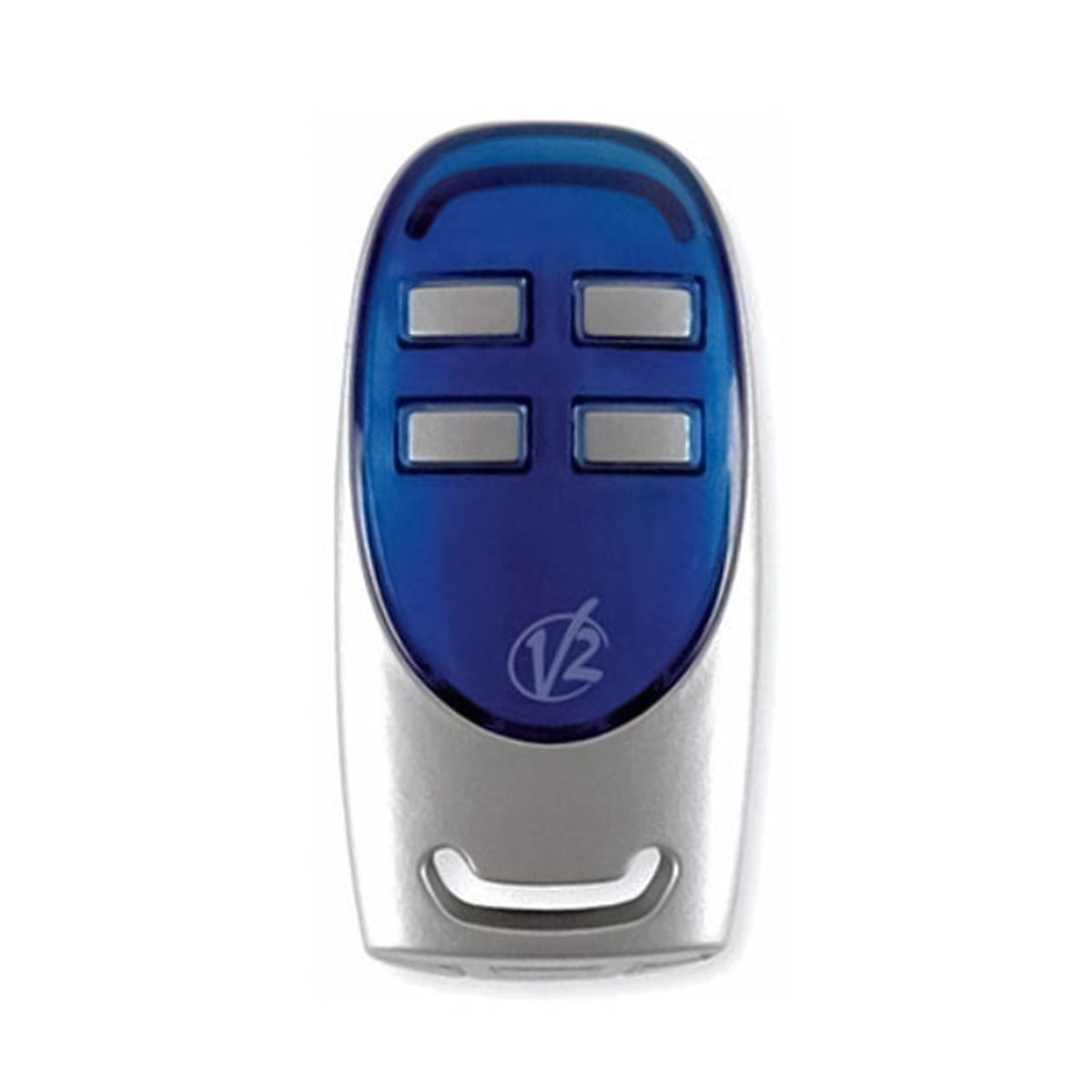

Replacement radio (RF) remote control fully compatible with the type V2 HANDY 4.

The remote control has been specially developed for the following V2 models: AZIMUT, CALYPSO, FENY, HANDY 2, HANDY 4, JEDY, MR2-U-433, WALLY2. (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

This remote control is available on branded remote control General GATE (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General GATE fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multifrequency auto-scan remote control.
• Copying/cloning of the code/protocol from the original remote control.
• Battery Panasonic CR2032 included.
• Dimensions: 69 x 34 x 10 mm
• If any specific colour required, state this information to the customers’ note during placing an order.

The remote control supplied is already pre-programmed on buttons 1 and 2. You only need to register the remote control to your original receiving unit memory

Copying code from the original remote control:

1. Press and hold button 1 on the General GATE remote, then press button 2 four times.
2. Release both buttons. The blue indicator LED on the General GATE remote will briefly blink every two seconds.
3. Place the original remote control you want to duplicate in front of or next to the General GATE remote.
4. On the original remote control, press and hold the button you want to duplicate. Keep the button on the original remote pressed until the blue LED on the General GATE doesn't light up. Then release the button on the original remote.
5. In a moment, the blue indicator LED on the General GATE will blink twice every two seconds. This alert informs the user that sending an additional signal is necessary for successful duplication.
6. Press and hold the same button on the original remote control as in step 4.
7. The LED on the General GATE will change its flashing speed (be faster) and the LED color to red, confirming the correct learning of the code.
8. At this moment, press the button where you want to store the code. The red LED on the remote will briefly light up and then turn off. This confirms the correct storage of the code on the selected button.
9. After learning the signal, you must pair the remote control to the drive unit.

How to REGISTER the new remote control into the original main unit:

1. Remove the control unit cover.
2. Press the button labeled P1 for a moment on the Control Units, the light will flash 5 times.
3. During this time interval, transmit the signal from the remote control that you want to write to the Control Unit.
4. The 3 second LED indicates that the code has been stored successfully.
5. The remote control is written, the indicator light will blink 5 times. You can write another remote control in the same way, or you can let the programming flash and turn off.
6. The transmitter and receiver are already working!

One single RF General GATE remote control for all: gate, garage door, venetian blind and indoor lightning. Other 3 buttons of the remote control could be programmed for other devices which require RF (radio) remote control. So it can control up to 4 different devices / receivers. This remote control could be used and programmed for any brand (with both fixed and rolling code). General GATE is THE ONLY RF remote control that you can program with codes of different door/gate manufacturers/frequencies into one General GATE. Supported frequency 280-870 MHz.
